UL 1015 Wire
UL 1015 electronic wire for the internal connection of electrical equipment, in the field of production of UL1015 electronic wire, the more famous domestic Sheng brand wire (formerly known as ChengXing wire CHENGXING E249743) and the new Asian wire, foreign brands such as Sumitomo wire, Hitachi wire.
Features
Product Information
UL 1015 Wire can be used for internal connections in electrical equipment. It consists of insulating layer and conductor. It is wrapped with a PVC insulating layer, and the inner conductor should be divided into two types: bare copper and tinned copper according to normal standards. The wires are produced and tested according to UL758 standard (including temperature resistance, pressure resistance, aging and other tests). It has passed the UL VW-1 and CSA Ft1 vertical flame resistance tests with uniform insulation thickness.
Details
Chinese name: UL1015 electronic wire
Rated voltage: 600V
Rated temperature: 105℃
Electronic wire structure: contains the insulation layer, the conductor two parts
Structure

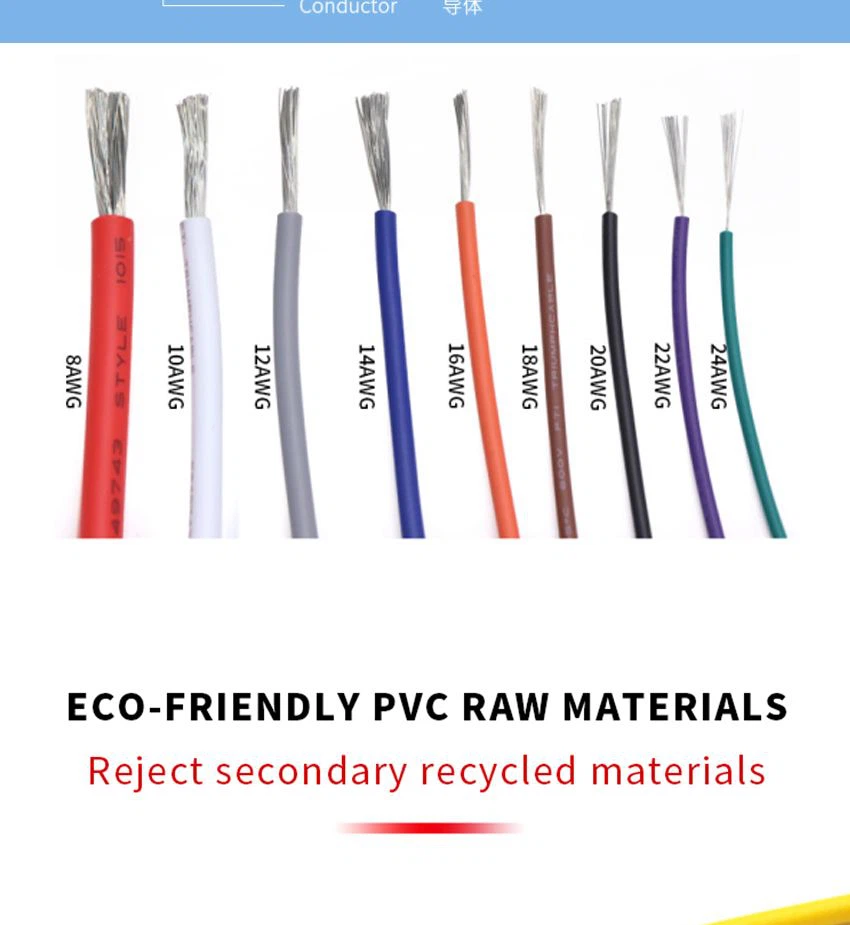

The UL 1015 wire contains insulation layer and conductor. The outer is PVC insulation layer, the full name of the Chinese polyvinyl chloride; internal conductor according to normal standards should be divided into bare copper and tinned copper two.
Product requirements
Rated temperature: 105°C
rated voltage: 600V
UL 1015 Wire must pass UL VW-1 and CSA Ft1 vertical flame resistance test with uniform insulation thickness.
Specification Sheet
Style | Wire Guage | Stranded Cooper/Dia | Insulation Thickness | Conductor O.D |
UL1015 | 28 | 7/0.127 | 0.79 | 2.00 |
UL1015 | 26 | 7/0.16 | 0.79 | 2.10 |
UL1015 | 24 | 11/0.16 | 0.79 | 2.20 |
UL1015 | 22 | 17/0.16 | 0.79 | 2.40 |
UL1015 | 20 | 21/0.178 | 0.79 | 2.50 |
UL1015 | 18 | 34/0.178 | 0.79 | 2.80 |
UL1015 | 16 | 26/0.254 | 0.79 | 3.10 |
UL1015 | 14 | 41/0.254 | 0.79 | 3.50 |
UL1015 | 12 | 65/0.254 | 0.79 | 4.00 |
UL1015 | 10 | 105/0.254 | 0.79 | 4.60 |
Difference between UL1007 and UL1015 Electrical Wire
The two main differences between these types of Electrical Wires are the outer diameter and rated voltage.
UL1007 is designed for 300V, with an ovals size measuring at .016 inches in circumference while 1015 enables 600V capacity but has larger dimensions at 0.30inch, which means it can handle higher levels electric current without breaking down so quickly under pressure during installation.
